Temperature-controlled Thermochromic Glass

Temperature-controled Thermochromic Glass, the first kind of temperature-controlled color-changing dimming glass that changes color for low-carbon and energy-saving buildings. The product can change the light transmission pattern, filter natural harmful light, anti-glare and privacy adjustment according to customer's demand. The color diversity of temperature-controlled color-changing dimming glass adopts a nearly traditional glass installation method, allowing modern buildings to say goodbye to the traditional external sunshade, so that modern and trendy buildings show a more beautiful side.

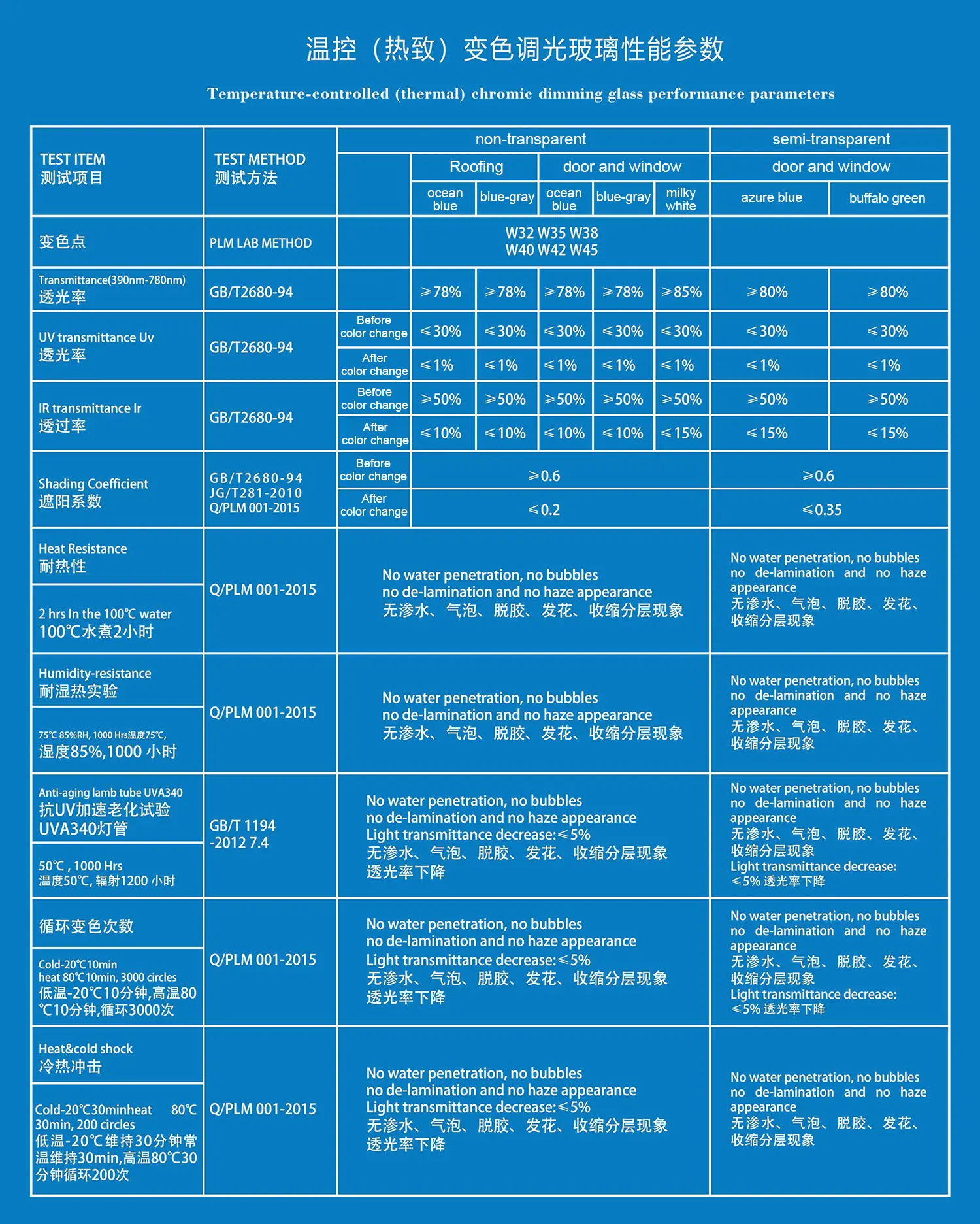

Technical Parameter

Glass structure	Visible light transmission ratio Tv		Solar heat gain coefficient (SHGC)		Middle heat transfer coefficient K [W/m².K]
Glass structure	Transparent	Atomized	Transparent	Atomized	Middle heat transfer coefficient K [W/m².K]
6+2PLM+6	0.89	0.15	0.76	0.25	4.85
6+2PLM+6+1.14pvb+6	0.88	0.13	0.74	0.25	4.69
6+2+6(medium transparency)LOW-E+12A+6	0.67	0.05	0.50	0.08	1.81
6+2+6(low transparency)LOW-E+12A+6	0.35	0.05	0.26	0.08	1.60
6+2+6(low transparency)LOW-E+12A+6+1.14PVB+6	0.34	0.05	0.25	0.08	1.60
6+2+6(low transparency)LOW-E+12Ar+6+1.14PVB+6	0.34	0.05	0.25	0.08	1.40

Technical Principle

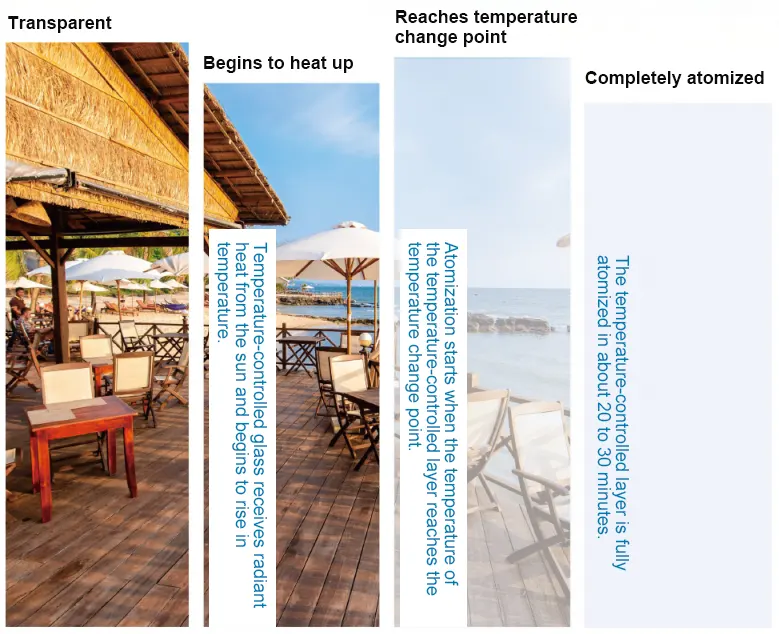

Customizable temperature change point function requirements, when the ambient temperature exceeds the memory temperature, the temperature control glass will automatically begin to show the transition from transparent to foggy form, to resist the outside world into the environment of the harmful light. When the temperature returns to below the memorized temperature, the glass will return to its original translucent state. These processes can be carried out without human intervention after the sensing temperature has been set to enjoy all seasons.

Application

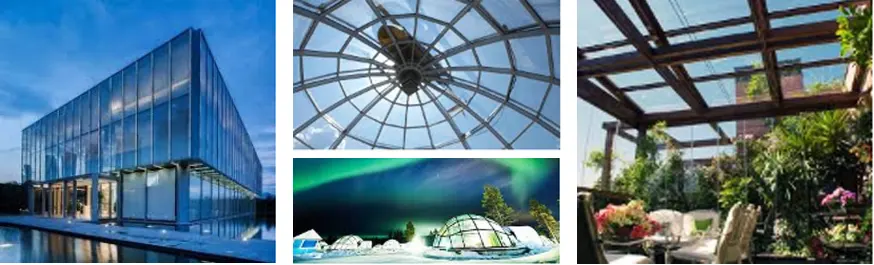

Temperature-controled Thermochromic Glass is mainly used in glass curtain walls, domes, sunrooms, etc., providing solutions for building insulation.

Product Features

1. Intelligent dimming
Automatically adjusts the intensity of sunlight exposure as the sun changes.

2. Passive shading
No need to borrow energy, driven by the intelligent conversion of solar heat, can realize high-performance heat insulation and sunshade function.

3. High light transmission
In summer, while shading the sun, it still maintains the brightness of the room, with a soft and cool indoor light, and in winter, high light transmission, which can be used to supplement the energy of light, significantly improving the comfort level of living; reducing the cost of air-conditioning operation.

4. Long life cycle
The temperature controlled glass experimental cycle has passed 3000 extreme cycle tests, i.e. 20 years cycle cycle tests.

5. Integration
Intelligent regulation, highlighting the modern building technology, personalized can build a variety of glass combinations, a variety of colors with; forming an integrated sunshade glass.

6. Zero maintenance
Easy to fabricate, easy to install, no post maintenance.
