Composite insulation fireproof glass

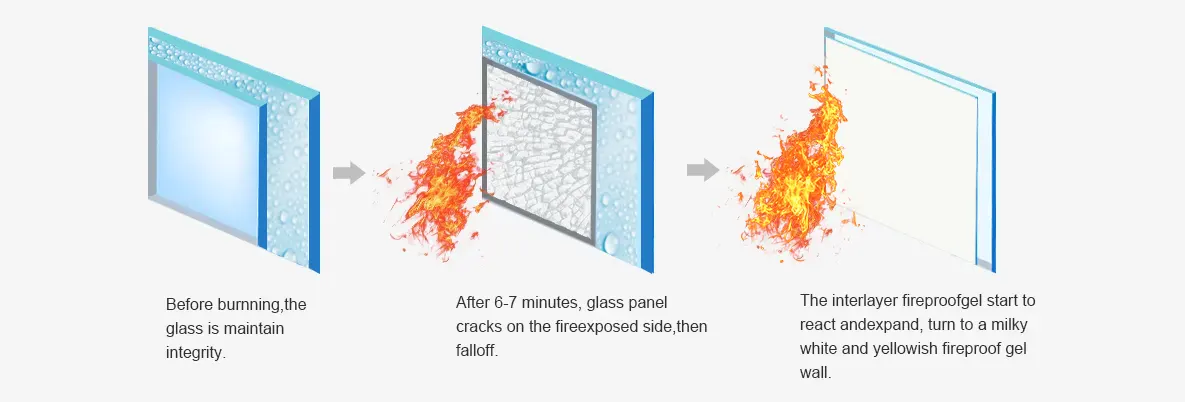

Composite insulation fireproof glass is a gluing process in which the middle of double-layer glass is filled with highly transparent fire-retardant fireproof liquid. It is commonly used in shopping mall partitions, steel or wooden doors and windows, etc. When a fire occurs, the fire retardant liquid in the middle of the composite fireproof glass absorbs a lot of heat from the flames and foams and expands, and turns into an opaque substance, which effectively prevents people from panicking about the occurrence of a fire. In this process, the glass as a whole remains intact, forming an effective barrier that can block the flame, smoke and hot toxic gases generated by combustion diffusion and spread. At the same time, it can also prevent the heat generated by combustion from the fire side of the backfire surface, can prevent the transfer of heat radiation, so that the backfire surface temperature is lower than 140 ℃, so that the backfire surface of the area of the escape or rescue personnel from high temperature, poisonous gases and thermal radiation burns, to prevent the backfire surface of the area of the combustible materials within a certain period of time by the high temperature and thermal radiation ignited to prevent the fire from spreading further.

Technical Data

Composite Insulation Fireproof Glass
Glass Range	Glass Type	Thickness (mm)	Integrity (mins)	Insulation (mins)	Max Size (mm)	Weight (KG/SQ)	Fire Proof Temperature (℃)
EI-Fireproof Glass	Composite Insulation Fireproof Glass	16-75	30-180	30-180	1800*2600	32-112	≥ 1000

Product Performance Characteristics

● When used for building windows or external walls, thermal insulated fireproof glass can be combined with other glass such as float glass and sunlight control glass to make multifunctional insulating glass with fireproof function.

● It can be made into curved glass according to the design requirements.

● High sound insulation and noise reduction function.

● Can be used in ambient temperature from 0 to +40 degrees Celsius.

Application

Fireproof partitions, fireproof glass windows, fireproof glass doors, building atrium fire barriers, fireproof screens, steel or wood fire doors, etc.
